Nelson Sprinklers

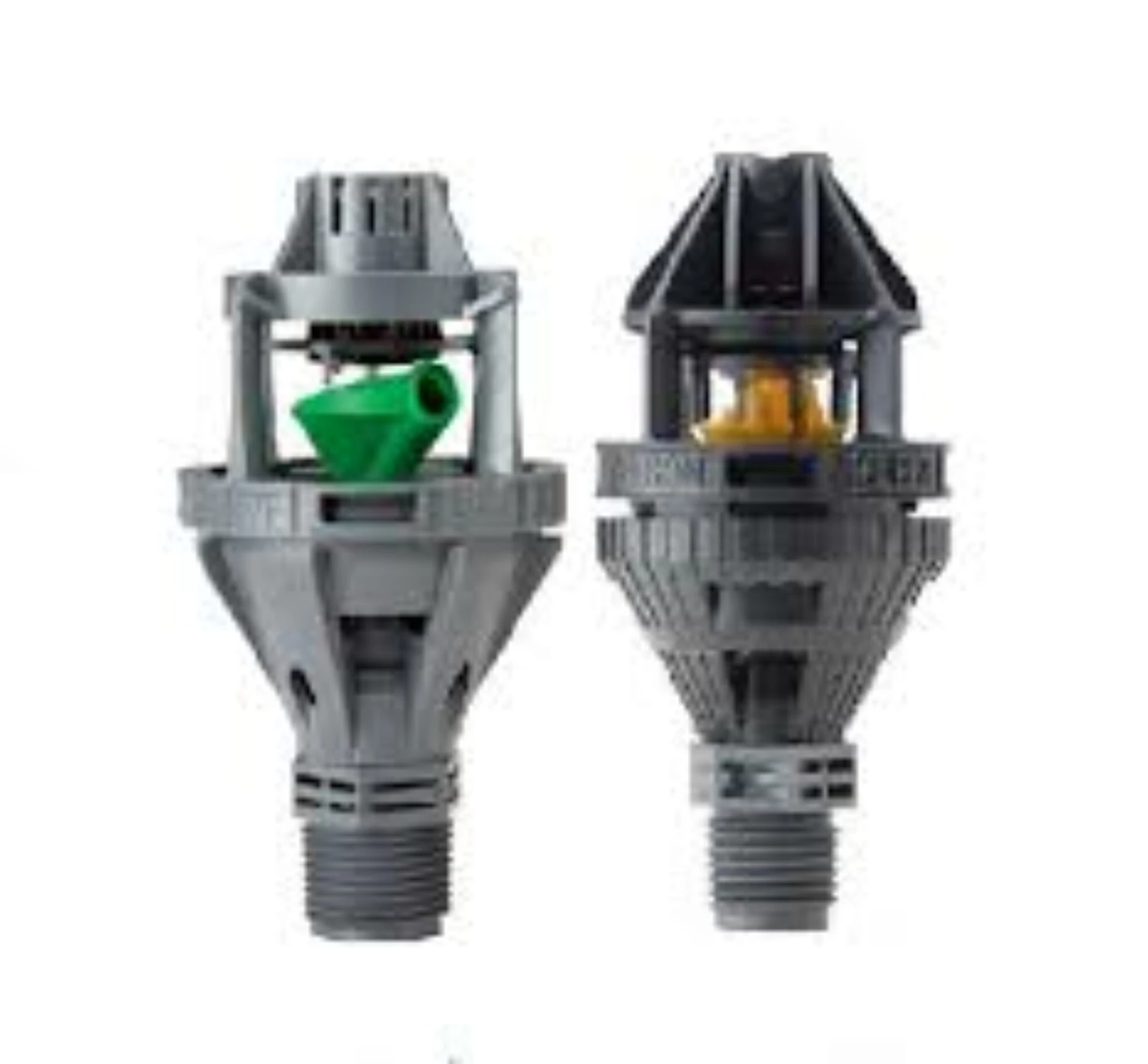

The Rotator family of sprinklers is redefining how we think of irrigation
From the micro-sprinkler (R5) to the field-unit (R33) - this unique drive outshines the standard mechanisms out there. This field-proven technology provides better uniformity - is easy to repair and clean - while having a longer wear life.
Uniformity is key to a successful irrigation systemWith Nelson Products farm irrigation sprinklers from our Auburn supply store, you can achieve optimal overlap patterns, giving you high uniformity in your nursery and greenhouse crops. Do more with less with Nelson.
Nelson Impact offers a number of exclusive features and advantages which give better performanceThe sturdy drive arm accompanied by the large impact surface allows for a consistent drive mechanism. The stainless steel arm and spring pin withstand even dirty water conditions, while its heavy-duty bearing contributes to a long life. Impacts are available with Nelson's famous FCN® Flow Control Nozzle to equalize flow rate under fluctuating pressure.
Nelson Big Guns
The Nelson 75 Series Big Gun comes as a Full (21° or 24° trajectory) or Part Circle (18° [HD only], 21°, 24°, or 43° trajectory) sprinkler with the Taper Ring Nozzle.
HD Lower Bearing, 12° Wedge Kit, Counterbalance Kit, Stream Straightener Vane. Can be fitted to a QC Valve or 2” 800 Series Control Valve.
1 1/2” or 2” FNPT or FBSP ANSI/DIN Nelson or Euro Flange
The Nelson 100 Series Big Gun comes as a Full or Part Circle sprinkler with an 18°, 21°, 24°, or 43° trajectory (or 15°- 45° adjustable trajectory). Taper, Taper Ring, or Taper Bore Nozzles are available (TR not available for SRNV).
Low-Pressure Drive Vane Kit, Counterbalance Kit, Secondary Nozzle Kit, 12° Wedge Kit and the Stream Straightener Vane. Can be fitted to a QC Valve or 2” 800 Series Control Valve
2” FNPT or FBSP, 2 1/2” FNPT ANSI/DIN, Nelson or Euro Flange for the F100 and SR100 - and the 2” FNPT or FBSP for SRNV100.
The Nelson 150 Series Big Gun comes as a Full Circle (21° or 24° trajectory), or Part Circle (21°, 24°, 27°, 43°, or 15°-45° adjustable trajectory) sprinkler. Taper, Taper Ring, or Taper Bore Nozzles are available.
Counterbalance Kit, Secondary Nozzle Kit, and Stream Straightener Vane. There is substantial thrust on a riser, so use a 3” valve minimum
Nelson, Euro or ANSI/DIN Flange (Also, Nelson Flange to Female Adapters).
The Nelson 200 Series Big Gun comes as a Full or Part Circle sprinkler with a 21°, 24°, or 27° trajectory. Taper Bore or Ring Nozzles are available.
Secondary Nozzle Kit (standard) and 12° Wedge Kit (SR200 only). There is substantial thrust on a riser, so use 4” valve minimum.
Nelson, Euro, or ANSI/DIN Flange (Also, Nelson Flange–to-Female Adapters).
Hosereel Mounted Booms R46
Designed and built to the same high standards as Briggs' larger models, the R46/35, R46/40 and R46/46 mounted booms allow a lane spacing of 35 - 66 metres.
For ease of operation the booms are transported on the hosereel and a fixed hydraulic lift system has been developed to transport the booms safely.
All models give accurate and uniform water distribution under a wide range of conditions, with a controlled droplet size to match the crop.
The booms operate at low pressure (0.6 - 4 bar) and can apply from 25 to 60 cubic metres per hour.
EfficientUniform water application gives far more even crop growth compared to raingun systems.
Using a Briggs boom can reduce water consumption by 20% compared with rainguns.
High flow rates allow faster retraction enabling large areas to be covered in less time.
Controlled droplet size reduces soil damage. Large droplets can be selected to reduce drift while fine droplets can be used to minimise damage to very delicate crops.
Reduced impact from small droplets also reduces soil capping and soil erosion.
Low pressure operation helps reduce pumping costs and puts less strain on the pipeline.
Boom Structural length (L) - 35m (115’)
Lane spacing (l) with no end nozzle - 38m (125')
Flow range - m³/hr (imp gpm) - 25 - 60 (90 – 220)
Quantity of outlets - 14 outlets
Folded length – m (ft) - 6m (20')
*Folded width with 2.2m centre section– m (ft) - 3.8 (12' 6")
Track width STANDARD CHASSIS – m (inch) - 1.5 – 4.2m (60” – 165”)
Track width OFFSET (ASYMETRIC) CHASSIS – m (inch) - 1.5 – 2.2m (60” – 86”)
Height to nozzle –m (in) - 1.5m (60”)
Weight – kg (imp lb) - 540 (1190)
Boom Structural length (L) - 40m (131’)
Lane spacing (l) with no end nozzle - 44m (144')
Flow range - m³/hr (imp gpm) - 25 - 60 (90 – 220)
Quantity of outlets - 16 outlets
Folded length – m (ft) - 6m (20')
*Folded width with 2.2m centre section– m (ft) - 4.05 (13' 2")
Track width STANDARD CHASSIS – m (inch) - 1.5 – 4.2m (60” – 165”)
Track width OFFSET (ASYMETRIC) CHASSIS – m (inch) - 1.5 – 2.2m (60” – 86”)
Height to nozzle –m (in) - 1.5m (60”)
Weight – kg (imp lb) - 590 (1300)
Boom Structural length (L) - 46m (151’)
Lane spacing (l) with no end nozzle - 50m (164')
Flow range - m³/hr (imp gpm) - 25 - 60 (90 – 220)
Quantity of outlets - 16 outlets
Folded length – m (ft) - 6m (20')
*Folded width with 2.2m centre section– m (ft) - 4.15 (13' 7")
Track width STANDARD CHASSIS – m (inch) - 1.5 – 4.2m (60” – 165”)
Track width OFFSET (ASYMETRIC) CHASSIS – m (inch) - 1.5 – 2.2m (60” – 86”)
Height to nozzle –m (in) - 1.5m (60”)
Weight – kg (imp lb) - 600 (1320)
Hosereel Mounted Booms R18 to R40
Designed and built to the same high standards as Briggs' larger models, the R18, R24, R30 and R40 mounted booms allow a lane spacing of 18 - 48 metres (other widths in between those shown are available on request).
For ease of operation the booms are transported on the reel and a fixed hydraulic lift system has been developed to transport the booms safely.
All models give accurate and uniform water distribution under a wide range of conditions, with a controlled droplet size to match the crop.
The booms operate at low pressure (0.6 - 4 bar) and can apply from 14 to 50 cubic metres per hour.
Efficient-Uniform water application gives far more even crop growth compared to raingun systems.
-Using a Briggs boom can reduce water consumption by 20% compared with rainguns.
-High flow rates allow faster retraction enabling large areas to be covered in less time.
-Controlled droplet size reduces soil damage. Large droplets can be selected to reduce drift while --
fine droplets can be used to minimise damage to very delicate crops.
-Reduced impact from small droplets also reduces soil capping and soil erosion.
-Low pressure operation helps reduce pumping costs and puts less strain on the pipeline.
Boom length (L) - 18m (59’)
Lane spacing (l) with no end nozzle- 22m (72’)
Flow - m³/hr (imp gpm) - 14 – 30 (51 – 110)
Quantity of outlets - 9 outlets
Folded length - m (ft) - 5m (16’5”)
Folded width with 1.5m centre section - m (ft) - 2.4m (7’11”)
Folded width with 1.5m centre section - m (ft) - 2.8m (9’3”)
Folded width with 2.2m centre section - m (ft) - 3.1m (10’2”)
Track width (T) – m (inch) standard chassis / offset -1.5 – 4.2m (60” – 84”) / 1.5 – 2.4m (60” – 96”)
Height to nozzle –m (ft) -1.5m (4’11”) - **2.28m (7’5”’) for high crop version in high position
Height to top of structure – m (ft) - 2.12m (7’ ) -**2.9m (9’6”) for high crop version in high position
Weight with standard chassis - 400 kg
Boom length (L) - 24m (79’)
Lane spacing (l) with no end nozzle- 30m (98’)
Flow - m³/hr (imp gpm) - 14 – 44 (51 – 160)
Quantity of outlets - 11 outlets
Folded length - m (ft) - 5m (16’5”)
Folded width with 1.5m centre section - m (ft) - 3.0m (9’10”)
Folded width with 1.5m centre section - m (ft) - 3.4m (11’2”)
Folded width with 2.2m centre section - m (ft) - 3.7m (12’2”)
Track width (T) – m (inch) standard chassis / offset -1.5 – 4.2m (60” – 84”) / 1.5 – 2.4m (60” – 96”)
Height to nozzle –m (ft) -1.5m (4’11”) - **2.28m (7’5”’) for high crop version in high position
Height to top of structure – m (ft) - 2.12m (7’ ) -**2.9m (9’6”) for high crop version in high position
Weight with standard chassis - 450 kg
Boom length (L) - 29m (95’)
Lane spacing (l) with no end nozzle- 34m (111’)
Flow - m³/hr (imp gpm) - 14 – 50 (51 – 184)
Quantity of outlets -13 outlets
Folded length - m (ft) - 5m (16’5”)
Folded width with 1.5m centre section - m (ft) - 3.0m (9’10”)
Folded width with 1.5m centre section - m (ft) - 3.4m (11’2”)
Folded width with 2.2m centre section - m (ft) - 3.7m (12’2”)
Track width (T) – m (inch) standard chassis / offset -1.5 – 4.2m (60” – 84”) / 1.5 – 2.4m (60” – 96”)
Height to nozzle –m (ft) -1.5m (4’11”) - **2.28m (7’5”’) for high crop version in high position
Height to top of structure – m (ft) - 2.12m (7’ ) -**2.9m (9’6”) for high crop version in high position
Weight with standard chassis - 460 kg
Boom length (L) - 40m (131’)
Lane spacing (l) with no end nozzle- 44m (144’)
Flow - m³/hr (imp gpm) - 12m/15m (39’/49’)
Quantity of outlets -17 outlets
Folded length - m (ft) - 5.5m (18’)
Folded width with 1.5m centre section - m (ft) - n/a
Folded width with 1.5m centre section - m (ft) - 3.1m (10’2”)
Folded width with 2.2m centre section - m (ft) - 3.4m (11’2”)
Track width (T) – m (inch) standard chassis / offset -1.5 – 4.2m (60” – 84”) / 1.5 – 2.4m (60” – 96”)
Height to nozzle –m (ft) -1.5m (4’11”) - 1.5m (4’11”)
Height to top of structure – m (ft) - 2.37m (7’8”)
Weight with standard chassis - 620kg
4 Wheel Chassis Briggs Boom Irrigation
Ranging in structural width from 50 to 76 metres, Briggs four-wheel chassis booms are efficient, tough, reliable and surprisingly versatile. Over 2000 4 wheel-chassis booms are in operation throughout the world.
Irrigated widths are from 50m to 96m depending on the choice of nozzle or sprinkler mounted on each end of the boom.
All are easy to operate, can be folded by one person in just a few minutes for transport and can be operated with almost any make and size of hosereel.
EfficientUniform water application gives far more even crop growth compared to raingun systems.
Using a Briggs boom can reduce water consumption by 20% or more compared with rainguns.
High flow rates allow faster retraction, enabling large areas to be covered in less time.
Controlled droplet size reduces soil damage. Large droplets can be selected to reduce drift while
fine droplets can be used to minimise damage to very delicate crops.
Less impact from small droplets also reduces soil capping and soil erosion.
Low pressure operation reduces pumping costs (less energy absorbed) and puts less strain on the pipeline.
Boom structural length (L) - 50m (154’)
Lane spacing (l) with no end nozzle - 54m (177')
Quantity of outlets - 18 outlets
Flow - m³/hr (imp gpm) - 22 – 72 (80 – 264)
Folded length – m (ft) - 7.4m (24’7”)
Folded width – m (ft) - 3.5m (11’6”)
Wheelbase (T) – m (ft) - 3.8m (12’6”)
Track width – m (inch) - 1.5 – 2.2m (60” – 86”)
Height to nozzle –m (in) - 1.5m (60”)
Height to top of structure – m (ft) - 2.93m (9’6”)
Height to top of structure with 3.1m high crop – m (ft)
- 4.6m (15’)
*Weight – kg (imp lb) - *1660 kg (3650lb)
Boom structural length (L) - 57m (187’)
Lane spacing (l) with no end nozzle - 60m (197')
Quantity of outlets - 20 outlets
Flow - m³/hr (imp gpm) - 22 – 72 (80 – 264)
Folded length – m (ft) -7.4m (24’7”)
Folded width – m (ft) - 3.65m (12’)
Wheelbase (T) – m (ft) - 3.8m (12’6”)
Track width – m (inch) - 1.5 – 2.2m (60” – 86”)
Height to nozzle –m (in) - 1.5m (60”)
Height to top of structure – m (ft) - 2.93m (9’6”)
Height to top of structure with 3.1m high crop – m (ft) - 4.6m (15’)
*Weight – kg (imp lb) - *1860 kg (4090lb)
Boom structural length (L) - 60m (197’)
Lane spacing (l) with no end nozzle -68m (223')
Quantity of outlets - 22 outlets
Flow - m³/hr (imp gpm) - 22 – 82 (80 – 300)
Folded length – m (ft) -7.4m (24’7”)
Folded width – m (ft) - 3.65m (12’)
Wheelbase (T) – m (ft) - 3.8m (12’6”)
Track width – m (inch) - 1.5 – 2.2m (60” – 86”)
Height to nozzle –m (in) - 1.5m (60”)
Height to top of structure – m (ft) - 2.93m (9’6”)
Height to top of structure with 3.1m high crop – m (ft) - 4.6m (15’)
*Weight – kg (imp lb) - *1865kg (4110lb)
Boom structural length (L) - 64m (210’)
Lane spacing (l) with no end nozzle - 68m (223')
Quantity of outlets - 22 outlets
Flow - m³/hr (imp gpm) - 22 – 82 (80 – 300)
Folded length – m (ft) -7.4m (24’7”)
Folded width – m (ft) - 3.9m (12’8")
Wheelbase (T) – m (ft) - 3.8m (12’6”)
Track width – m (inch) - 1.5 – 2.2m (60” – 86”)
Height to nozzle –m (in) - 1.5m (60”)
Height to top of structure – m (ft) - 2.93m (9’6”)
Height to top of structure with 3.1m high crop – m (ft) - 4.6m (15’)
*Weight – kg (imp lb) - *2050kg (4520lb)
Boom structural length (L) - 76m (250’)
Lane spacing (l) with no end nozzle - 80m (262')
Quantity of outlets - 26 outlets
Flow - m³/hr (imp gpm) - 22 – 82 (80 – 300)
Folded length – m (ft) -7.4m (24’7”)
Folded width – m (ft) - 3.65m (12’)
Wheelbase (T) – m (ft) - 3.8m (12’6”)
Track width – m (inch) - 1.5 – 2.2m (60” – 86”)
Height to nozzle –m (in) - 1.5m (60”)
Height to top of structure – m (ft) - 2.93m (9’6”)
Height to top of structure with 3.1m high crop – m (ft) - 2.93m (9’6”)
*Weight – kg (imp lb) - *1870kg (4120lb)
Rivulis Hydro PC / PCND Tubing
Hydro PC is a drip line made with flow-regulating cylindrical drippers which allow growers to irrigate crops in a wide range of field conditions. Whether you’re irrigating on a slope or as far as the eye can see, count on Hydro PC to deliver.
The Hydro PC drippers have sensitive floating diaphragms that regulate and maintain a constant flow rate at variable inlet pressures. Because Hydro PC has a large cross-sectional labyrinth and a self-cleaning mechanism, it’s highly resistant to clogging. And with two outlets per dripper, Hydro PC will continue to deliver the right amount of water, throughout the entire field.
The Hydro PC is constructed with premium resins resistant to UV degradation and damage caused by commonly used chemicals and fertilizers.
Our industry leading irrigation products help growers better manage resources, grow more consistent crops, and increase yields.Aluminum Pipe Tube for Irrigation System
Aluminum pipe tube has been used in the irrigation industry for over fifty years. Its low density, good strength, and corrosion resistance make it an excellent choice for a variety of tube and joint applications.
The aluminum tube irrigation pipe available at our Auburn location is ideally suited for use with all types of irrigation systems, including center pivots, big guns and traveler systems, hand move and mechanical moves.
Providing you with the widest range of high-pressure mainline irrigation pipe sizes available from any manufacturer.
2″, 3″, 4″, 6″, 8″, and 10″ Pipe Sizes
• A heavier coupler casting for maximum strength, especially in the weld area.
• Equipped with pressure seal gaskets.
Tigerflex H
For construction pumps, septic tank and marine pump-out service, mining and quarry use. PVC is resistant to some chemicals, acids, and alkalis. The hose is sold by the foot.
Tube:Smooth clear PVC
Reinforcement: White PVC helix
Cover: Clear PVC with excellent weather and abrasion resistance
Temperature Range: -20°C to +65°C (-4°F to +150°F)
Kanaflex Kanaline SR
Heavy-duty suction and discharge hose for use in irrigation suction and construction pumping. The hose is sold by the foot.
Tube: Smooth clear PVC
Reinforcement: Braided synthetic yarn
Cover: External PVC helix provides abrasion resistance and easy dragging
Temperature Range: -25°C to +70°C (-13°F to +158°F)
Pressure: Up to 100 PSI depending on size
• 2″ – 6″ – 100ft cut to multiples of 10ft.
• 8″ – 25ft & 40ft no cutting.
• 10″ – 20ft no cutting.
Kuriyama OROFLEX 20 Series
Yellow PVC/Nitrile rubber tube and cover; polyester reinforcement provides working pressures equal to or higher than most PVC or rubber hoses. The hose is sold by the foot.
Applications:Air compressors, High-pressure liquid pumping, Bulk powder discharge (excluding cement), Irrigation, Agriculture, Watering, Dewatering, Drainage, Flotation booms, Cable covering, Industrial wash down, Limited oil and chemical applications.
Features:• Unique woven construction: Resists kinking, stretching and twisting.
• Ribbed cover: Provides high resistance to oil, weathering, and abrasion.
• Handling: Lighter, less bulky, stores better in less space than most rubber discharge hoses.
Kuriyama Ironsides
A heavy-duty PVC water discharge hose featuring a premium quality PVC tube and cover. The hose is reinforced with two spiral plies and longitudinal synthetic cords. MSHA-accepted (Acceptance Marking No. MSHA IC-218/1) for use as a water hose in underground mining applications. Hose is sold by the foot.
Features• Temp Range: -5ºF to 170ºF (-20ºC to 76ºC)
• MSHA-accepted
• Premium quality tube and cover
• High working pressure
• Ozone resistant
• Coil flat for easy storage
Rivulis Pro-Flat Hose
Rivulis Pro-Flat Premium PVC lay-flat hose, tough enough to meet all your needs. The premium resin used in this hose minimizes twisting and reduces contraction/expansion. Thick wall construction and strong yarn structure enables this durable hose to withstand extremely harsh conditions. Applications include transfer lines, sub-main lines, and discharge lines.
Rainbow R Prime
We are pleased to offer a complete line of Rainbow R-Prime Series continuous priming centrifugal pumps with dry-run capabilities for the construction, mining, municipal, industrial and environmental markets. The R-Prime Series are available with diesel engines for both mobile and stationary applications.
The R-Prime Series serves a wide variety of applications from dewatering a construction site to sewage bypass systems or other applications where the intermittent flow can be a problem.
Features:• Close-coupled centrifugal pump with vacuum priming compressor mounted to a diesel engine. Also available electric motor driven.
• All cast-iron construction with ductile iron impeller and wear plate.
• Solids handling capabilities to 3″ (75mm). It will handle a variety of materials.
• Exclusive Rainbow continuous priming system designed with simplicity in mind.
• Dry run capabilities with double oil-lubricated pump seal.
• Available with skid mount integral fuel tank in 100 gallons or 130-gallon capacity and industrial-strength off-road or highway DOT trailer.
• Available in a variety of diesel engine options.
• Available with many accessory options including Auto Start controllers.
Berkeley Water Pumps
Berkeley knows that you demand the highest performance from your irrigation pumps. Berkeley centrifugal industrial water irrigation pumps, available from our Auburn location, are designed for irrigation pumping, waterfalls, well pumps, water truck pumps, fire, and other water pumping needs. Berkeley pumps are powered by electric motors or gas-driven engines.
CFS is a recognized leader and a distributor of Berkeley industrial water pumps and pump parts in the Auburn area. We sell and design pump systems for our customers, as well as provide pump parts and services.
Slurry & Wastewater Pumps
All Kifco wastewater & slurry pumps are single-stage centrifugal pumps with mechanical seals and integrated gearboxes. We offer four standard slurry pump models.
Features:• The pump volute and impellers are made from spheroidal graphite (SG) iron
• Three vaned open impeller pumps include a serrated inlet with an optional rotating knife
• These pumps are capable of handling troublesome solids, including most animal waste
• Gooseneck fitting allows the pump discharge to be made in multiple directions without the need to move the pump
All Kifco wastewater & slurry pumps are single
stage centrifugal pumps with mechanical seals
and integrated gearboxes. The pump volute and
impellers are made from spheroidal graphite
(SG) iron
• Three vaned open impeller pumps include a
serrated inlet with an optional rotating knife.
These pumps are capable of handling troublesome solids, including most animal waste
• Other models available as quote only. Contact
Kifco for more information.
• Gooseneck fitting allows the pump discharge to
be made in multiple directions without the need
to move the pump
All Kifco wastewater & slurry pumps are single
stage centrifugal pumps with mechanical seals
and integrated gearboxes. The pump volute and
impellers are made from spheroidal graphite
(SG) iron
• Three vaned open impeller pumps include a
serrated inlet with an optional rotating knife.
These pumps are capable of handling troublesome solids, including most animal waste
• Other models available as quote only. Contact
Kifco for more information.
• Gooseneck fitting allows the pump discharge to
be made in multiple directions without the need
to move the pump.
All Kifco wastewater & slurry pumps are single
stage centrifugal pumps with mechanical seals
and integrated gearboxes. The pump volute and
impellers are made from spheroidal graphite
(SG) iron
• Three vaned open impeller pumps include a
serrated inlet with an optional rotating knife.
These pumps are capable of handling troublesome solids, including most animal waste
• Other models available as quote only. Contact
Kifco for more information.
• Gooseneck fitting allows the pump discharge to
be made in multiple directions without the need
to move the pump.
All Kifco wastewater & slurry pumps are single
stage centrifugal pumps with mechanical seals
and integrated gearboxes. The pump volute and
impellers are made from spheroidal graphite
(SG) iron
• Three vaned open impeller pumps include a
serrated inlet with an optional rotating knife.
These pumps are capable of handling troublesome solids, including most animal waste
• Other models available as quote only. Contact
Kifco for more information.
• Gooseneck fitting allows the pump discharge to
be made in multiple directions without the need
to move the pump.
PTO Driven Pumps
PTO Pumps are driven from a PTO shaft with maximum tractor output of 540 to 1000 RPMs and are available as bare pumps, mounted on a cart or 3-point frame, or fully fitted. We offer a wide range of PTO pumps to choose from.
Compact, reliable PTO pump capable of 50 to 185 gpm
with corresponding pressures of 146 to 123 psi using
13 to 23 hp
• Available with heavy duty two wheeled trailer or galvanized three point mount
• Designed with industry leading oil lubricated step up
gearbox (no belts or pulleys) with shafts supported by
widely spaced bearings
• Easily replaceable packing gland type water seal
• Pumps can be fitted with 2” female thread discharge
priming valve, hand primer, fluid filled pressure gauge,
short suction adapter with 2” female pipe thread and #6
heavy duty 1 3/8 six spline PTO shaft
Compact, reliable PTO pump capable of 50 to 330 gpm
with corresponding pressures of 90 to 70 psi using 8.5
to 20 hp
• Available with heavy duty two wheeled trailer or galvanized three point mount
• Designed with industry leading oil lubricated step up
gearbox (no belts or pulleys) with shafts supported by
widely spaced bearings
• Easily replaceable packing gland type water seal
• Pumps can be fitted with 2” female thread discharge
priming valve, hand primer, fluid filled pressure gauge,
short suction adapter with 3” female pipe thread and
#6 heavy duty 1 3/8 six spline PTO shaft
Compact, reliable PTO pump capable of 50 to 280
gpm with corresponding pressures of 137 to 110psi
using 16 to 289hp
• Available with heavy duty two wheeled trailer or
galvanized three point mount
• Designed with industry leading oil lubricated step
up gearbox (no belts or pulleys) with shafts supported by widely spaced bearings
• Easily replaceable packing gland type water seal
• Pumps can be fitted with 2” female thread discharge
priming valve, hand primer, fluid filled pressure
gauge, short suction adapter with 3” female pipe
thread and #6 heavy duty 1 3/8 six spline PTO shaft
Compact, reliable PTO pump capable of 70 to 300 gpm
with corresponding pressures of 171 to 133 psi using
22 to 41 hp
• Available with heavy duty two wheeled trailer or galvanized three point mount
• Designed with industry leading oil lubricated step up
gearbox (no belts or pulleys) with shafts supported by
widely spaced bearings
• Easily replaceable packing gland type water seal
• Pumps can be fitted with 2” female thread discharge
priming valve, hand primer, fluid filled pressure gauge,
short suction adapter with 3” female pipe thread and
#6 heavy duty 1 3/8 six spline PTO shaft
Compact, reliable PTO pump capable of 100 to 425
gpm with corresponding pressures of 108 to 99 psi
using 18 to 35 hp
• Available with heavy duty two wheeled trailer or galvanized three point mount
• Designed with industry leading oil lubricated step up
gearbox (no belts or pulleys) with shafts supported by
widely spaced bearings
• Easily replaceable packing gland type water seal
• Pumps can be fitted with 4” female thread discharge
priming valve, hand primer, fluid filled pressure gauge,
short suction adapter with 4” female pipe thread and
#6 heavy duty 1 3/8 six spline PTO shaft
Compact, reliable PTO pump capable of 150 to 530
gpm with corresponding pressures of 161 to 131 psi
using 29 to 59 hp
• Available with heavy duty two wheeled trailer or galvanized three point mount
• Designed with industry leading oil lubricated step up
gearbox (no belts or pulleys) with shafts supported by
widely spaced bearings
• Easily replaceable packing gland type water seal
• Pumps can be fitted with 4” female thread discharge
priming valve, hand primer, fluid filled pressure gauge,
short suction adapter with 4” female pipe thread and
#6 heavy duty 1 3/8 six spline PTO shaft
Large Primary Pumps
Engine Driven Pump Packages are primary pump & engine combinations mounted on a rugged galvanized frame and are self-contained. Kifco packages are EPA emissions compliant for irrigation use and our standard models are specifically sized to match Kifco Water-Reels.
The pump and engine combination is mounted on a rugged galvanized skid which can be easily converted to a trailer. These packages are capable of continuous operation in demanding environments.
We offer four standard Pump Packages, Models KB2.5JD and KB4JD. Custom-built packages can be ordered for almost any application.
Compatible Water-Reel Model
Kifco T/E180, T/E200S
Kifco T/E200L, T/E210
Kifco T/E25x750, T/E27x980
Compatible Water-Reel Model
Kifco T/E27x980, T/E30x660, T/E30x980,
Kifco T/E30x1200, T/E33x1120. T/E33x1050
Kifco T/E37x1080, T/E37x1220, T/E40x1250
Kifco T/E40x1320, T/E45x1150
Medium Primary Pumps
Kifco’s Medium Primary Pumps are a pump & engine combinations mounted on a rugged galvanized frame and are self-contained. Kifco packages are EPA emissions compliant for irrigation use and our standard model is specifically sized to match Kifco Water-Reels. Custom-built packages can be ordered for almost any application.
Features:• 2.5 AGE Darley Centrifugal Pump close-coupled to Briggs & Stratton gas (35Hp) or Kubota diesel (42Hp) engines
• Low oil & high water temp. safety shutdown on 42Hp Kubota engine
• Both models are standard on a small skid with trailer upgrade available and feature Murphy High/Low Switch for automatic shutdown, canopy roof enclosure, and a 50-gallon fuel cell
Compatible Water-Reel Model
Kifco T/E180, T/E200S
Kifco T/E 200L, T/E210
Kifco T/E25x750, T/E27x980
Compatible Water-Reel Model
Kifco T/E25x750, T/E27x980
Kifco T/E30x660, T/E30x980
Kifco T/E30x1200, T/E33x1120
Small Primary Pumps
Kifco’s small, air-cooled engine driven Primary Pumps are an economical match for our B-Series Water-Reels and smaller Ag-Rain Models.
Kifco’s Small Primary pumps feature heavy-duty Franklin Electric pumps close coupled to Honda, Kohler or Briggs & Stratton engines for a compact, high performing unit. Our High-Pressure Small Primary features a Darley pump & Honda gas engine.
All models come standard on a small skid and feature electronic ignition, low flow shut-off, high temp blow off valve, fuel filter, air filters, muffler, choke and throttle to protect your investment and allow for safe operation.
Compatible Water-Reels
Kifco B110
Kifco E110
Compatible Water-Reels
Kifco B110
Kifco E110
Kifco B140
Kifco E140
Compatible Water-Reels
Kifco T/E180, T/E200S,
Kifco T/E200L, T/E210
Compatible Water-Reels
Kifco T/E180, T/E200S,
Kifco T/E200, T/E210,
Kifco T/E23x600,
Kifco T/E25x750,
Kifco T/E27x980,
Kifco T/E30x660,
Kifco T/E30x980
Kifco Water / Booster Pumps
Booster Pumps provide additional pressure to your Water-Reel when needed to maximize performance. Kifco offers Stand Alone Boosters (pump only) as well as reel-mounted gasoline booster pumps.
Kifco’s standard engine driven reel-mounted booster pumps to feature heavy-duty Franklin Electric centrifugal pumps close coupled to Honda, Kohler Kubota or Briggs & Stratton engines for compact, high performing that mounts directly to your Water-Reel.
Engine-driven booster pumps are equipped with electronic ignition, low flow shut-off, high temp blow off valve, fuel & air filters, muffler, choke and throttle to protect your investment and for safe operation.
Kifco B-Series Water-Reels
BELLOWS VS. ELECTRIC DRIVE
Operators prefer the simplicity of the Bellows Drive. Factors that make the Electric Drive the better option for your application include the following:
1- High Travel Speeds. An electric driven model will provide higher travel speeds for light applications (0.3 inches of water or less)
2- Marginal Water Pressure. If the pressure of the water is marginal, choose the electric drive over the bellows. Electric drive models will operate on as little as 26 PSI. The Bellows driven models require a minimum of 50 PSI continuously.
3- Puddle-free Application. With the Bellows drive, there is water discharge through the discharge hose. Some applications, such as watering your horse arena, prefer to not have water exiting the discharge hose, saturating where the hose is placed. For puddle free applications without any discharge of water, the electric drive is the best choice.
When these three factors are not involved, the bellows driven models are the best choice.
ENGINE VS. TURBINE DRIVE SYSTEMSThere are three circumstances that usually dictate the need for engine driven Water-Reels instead of turbine driven Water-Reels.
1- High Travel Speeds. An engine driven model should be used if high travel speeds are needed for light applications (0.3 inches of water or less). Engine driven travelers are capable of speeds two times that of turbine drives.
2- Slurry Application. If the Water-Reel is applying slurry or any substance that contains significant solids, an engine driven model should be used. Usage of a turbine driven model in a slurry application is limited due to the size of particles that can pass through a turbine motor.
3- Marginal Water Pressure. If the pressure of the water is marginal it may be wise to choose an engine driven machine. The turbine driven system will take approximately 6psi to 10 psi to power the turbine depending on the speed of travel. This additional pressure at the sprinkler may be critical.
When these three factors are not involved, the turbine driven models are the best choice.
Tube Inner Diameter Length: 1.1"x280'
Irrigation Width:68 - 118'
Irrigated Length: 314 - 339'
Irrigated Area Per Run (Acres): 0.5 - 0.9
Drive System: Bellows
GPM Range: 4 - 27
Inlet PSI Range: 45 - 103
Hours Per Full Run: 2.3 - 14
Sprinkler Included: SIME K1 or SIME Silver Tube Inner
Optional Solar Panel: Kifco Model E140 can be equipped with a highly efficient solar panel which eliminates the need for an electrical charge.
The E series does not require water psi to drive the unit, it is driven by the electric powered motor
Tube Inner Diameter Length: 1.4"x350'
Irrigation Width: 100 - 198'
Irrigated Length: 400 - 449'
Irrigated Area Per Run (Acres): 0.2 - 1.5
Drive System: Bellows
GPM Range: 18 - 80
Inlet PSI Range: 47 - 149
Hours Per Full Run: 3.7 - 10
Sprinkler Options: Sime K1, Sime Hidra, Neslon SR75 Big Gun Sprinkler, Komet Twinmax
Optional Solar Panel: Kifco Model E140 can be equipped with a highly efficient solar panel which eliminates the need for an electrical charge.
The E series does not require water psi to drive the unit, it is driven by the electric powered motor
Tube Inner Diameter Length: 1.9"x320'
Irrigation Width: 105 - 238'
Irrigated Length: 432 - 490'
Irrigated Area Per Run (Acres): 1.1 - 2.4
Drive System: Turbine or Engine
GPM Range: 26 - 148
Inlet PSI Range: 43 - 150 (Turbine) 33 - 140 (Engine)
Hours Per Full Run: 2.6 - 17.7 (Turbine) 4.6 - 9.3 (Engine)
Sprinkler Options: Sime Hidra, Nelson SR75 or Komet Twinmax
Tube Inner Diameter Length: 1.9"x580'
Irrigation Width: 108 - 211'
Irrigated Length: 634 - 685'
Irrigated Area Per Run (Acres): 2.3 - 3.2
Drive System: Turbine or Engine
GPM Range: 36 - 115
Inlet PSI Range: 61 - 148 (Turbine) 51 - 138 (Engine)
Hours Per Full Run: 4.6 - 27 (Turbine) 8.4 - 16.8 (Engine)
Sprinkler Options: Sime Hidra, Nelson SR75 or Komet Twinmax
Tube Inner Diameter Length: 2.1"x400'
Irrigation Width:105 - 235'
Irrigated Length:452 - 518'
Irrigated Area Per Run (Acres): 1.6 - 2.8
Drive System: Turbine or Engine
GPM Range: 40 - 138
Inlet PSI Range: 44 - 141 (Turbine) 34 - 131 (Engine)
Hours Per Full Run:3.4 - 22 (Turbine) 5.8 - 11.6 (Engine)
Sprinkler Options:Sime Hidra, Nelson SR75 or Komet Twinmax
Tube Inner Diameter Length: 1.9"x580'
Irrigation Width:136 - 186'
Irrigated Length:648 - 673'
Irrigated Area Per Run (Acres): 2.3 - 3.2
Drive System: Turbine
GPM Range: 62 - 107
Inlet PSI Range: 55 - 140
Hours Per Full Run:4.6 - 27
Sprinkler Options: Sime Hidra, Nelson SR75 or Komet Twinmax
Kifco Ag-Rain Water-Reels
Kifco Water-Reels are the premier hard hose travelers in the irrigation industry. Water-Reels are used around the world for portable irrigation, dust suppression, leaching, & de-watering. Our engine drive units are ideal for redistributing wastewater with up to 3% solids.
Increase crop yields and irrigate hard to reach areas. Water-Reels are an easy set and go system that can water acres in just a few unattended passes.
CFS Irrigation Supply carries a variety of sizes and options to fulfill all your irrigation needs.
Tube Inner Diameter Length: 3.3"x1120'
Irrigation Width:197'-248'
Irrigated Length:1219'-1244'
Irrigated Area Per Run (Acres): 5.6-7.3
Drive System: Turbine or Engine
GPM Range: 165-330
Inlet PSI Range: 81-144
Hours Per Full Run: 3.7-37
Chassis Size: ST5
Tube Inner Diameter Length: 3.7" x 1220'
Irrigation Width:210'-285'
Irrigated Length: 1325'-1362'
Irrigated Area Per Run (Acres): 6.4-8.9
Drive System: Turbine or Engine
GPM Range: 205-415
Inlet PSI Range: 81-144
Hours Per Full Run: 4.1-41 (Turbine) 3.1-20.3 (Engine)
Chassis Size: ST6
Tube Inner Diameter Length: 4.0"x1320'
Irrigation Width:228'-298'
Irrigated Length: 1434'-1469'
Irrigated Area Per Run (Acres): 7.5-10
Drive System: Turbine or Engine
GPM Range: 205-415
Inlet PSI Range: 78-150 (Turbine) 68-140 (Engine)
Hours Per Full Run: 4.4-44 (Turbine) 3.3-22 (Engine)
Chassis Size: ST7
Kifco Ag-Rain Water-Reels
Kifco Water-Reels are the premier hard hose travelers in the irrigation industry. Water-Reels are used around the world for portable irrigation, dust suppression, leaching, & de-watering. Our engine drive units are ideal for redistributing wastewater with up to 3% solids.
Increase crop yields and irrigate hard to reach areas. Water-Reels are an easy set and go system that can water acres in just a few unattended passes.
CFS Irrigation Supply carries a variety of sizes and options to fulfill all your irrigation needs.
Tube Inner Diameter Length: 2.7" x 980'
Irrigation Width:154'-203'
Irrigated Length:1057'-1082'
Irrigated Area Per Run (Acres): 3.7-5.0
Drive System: Turbine or Engine
GPM Range: 74-152
Inlet PSI Range: 71-128 (Turbine) 61-118 (Engine)
Hours Per Full Run: 3.3 - 32 (Turbine) 2.5 - 16 (Engine)
Sprinkler Included: Nelson SR100
Chassis Size: ST3
Tube Inner Diameter Length: 3.0" x 980'
Irrigation Width:172'-243'
Irrigated Length:1,066'-1,101
Irrigated Area Per Run (Acres): 4.2-6.2
Drive System: Turbine or Engine
GPM Range: 100-275
Inlet PSI Range: 71-144 (Turbine) 61-134 (Engine)
Hours Per Full Run: 3.3 - 32 (Turbine) 2.4 - 16 (Engine)
Chassis Size: ST4
Tube Inner Diameter Length: 3.0" x 1200'
Irrigation Width:186'-232'
Irrigated Length:1293'-1316'
Irrigated Area Per Run (Acres): 5.5-7
Drive System: Turbine or Engine
GPM Range: 125-240
Inlet PSI Range: 81 - 150 (Turbine) 71 - 140 (Engine)
Hours Per Full Run: 4.0 - 40 (Turbine) 3.0 - 20 (Engine)
Chassis Size: ST5
Toro Aqua-Traxx Drip Tape
The premium choice for drip irrigation, Aqua-Traxx with the PBX Advantage offers a Proportionally Balanced Cross-Section (PBX) design that optimizes flow path turbulence to effectively manage water flow, deliver uniform distribution, and reduce clogging.
Available in 15 mil, 8 mil, and 6 mil this drip tape is ideal for row crops or raised beds. Its seamless construction reduces leakage at fittings. The turbulent flow path and slit outlets allow for consistent flow rates.
Features:• Superb watering efficiency and uniformity
• Incredible durability and plugging resistance
• Ideal for above ground, mulched or buried applications
• Use with 5/8″ tape fittings
Warranty: 6 months
Pressure Range: 4-12 PSI
Filtration Requirements: Minimum 155 mesh recommended
Installation: Blue Stripe Up
T-Tape Drip Tape
One of the most recognized and trusted drip tape brands in the world, T-Tape Drip Tape is used in a variety of crops around the world to help reduce water consumption, increase crop quality, and increase crop yields. T-Tape Drip Tape can be installed on the ground, under plastic, or even subsurface. T-Tape’s industry-leading material strength, design, and quality production standards ensure that it’s the drip tape that you can count on year after year.
A great thing is when you use T-Tape, closer emitter spacing intervals do not need to come at an extra cost. Because Rivulis T-Tape has emitters manufactured into the tape itself, as opposed to inserted molded emitters, there is no cost difference per meter between 10 emitters per meter (10 cm spacing) and two emitters per meter (50 cm spacing).
Ro-Drip Drip Tape
Only Ro-Drip has an expanding flow-path that enlarges when you increase water pressure. This unique feature helps expel foreign particles that would have permanently blocked other drip tapes. If you clog your Ro-Drip labyrinth, you can increase your system pressure which results in the expansion of the labyrinth flow channel, helping expel debris and normal operation to resume.
Features:• Unique expanding vortex flow path labyrinth helps expel debris
• Available in a wide variety of emitter spacings
• Manufactured to the highest level of quality
Rivulis Drip Tape
Drip Tape is an economical solution for annual row crops, field crops, and greenhouses. Engineered with an efficient turbulent flow path, Drip Tape’s channel design minimizes clogging. Because Drip Tape is a flat integral drip tape, it is a good choice for manual or mechanized layout and retrieval. Drip Tape is available in a wide range of diameters and wall thicknesses.
